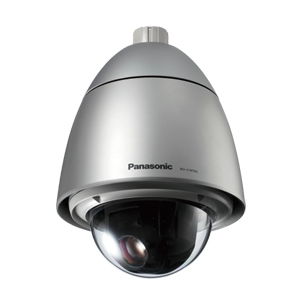

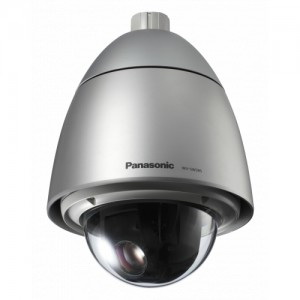

Super Dynamic 6

Weather Resistant Dome Camera

WV-CW590 Series

All-in-one 24-hour outdoor surveillance camera

featuring 36x zoom and Super Dynamic 6 technology

• Super Dynamic 6 technology delivers 128x(NTSC) / 160x (PAL) wider dynamic

 range compared to conventional cameras.

• High resolution: 650 TV lines

• High sensitivity with Day/Night function: 0.5 lx (Color) at F1.4

(Wide), 0.04 lx (B/W) at F1.4 (Wide). IR cut filter switches on/off to

enhance the sensitivity in B/W mode.

• Adaptive Digital Noise Reduction: Integration of 2D-DNR and

3D-DNR ensures noise reduction in various conditions.

• Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up

to 512x)

• Electronic shutter from 1/100(NTSC), 1/120 (PAL) to 1/10,000 s

• 36x zoom lens: 3.3 ~ 119 mm (approx. 720x with digital zoom)

• Pan/Tilt speed of max. 400°/s at preset mode and 0.065°/s super

fine control at manual mode

• 5 degrees upper view for various applications

• 256 preset positions that can be activated from the system

controller with a switcher or recorder (specific models).

• Auto tracking: The camera follows the largest movement in the

image automatically. The camera will pan and tilt to keep the

subject in the center of the image.

• VMD (Video Motion Detector) with Mask 8 x 6 areas

• Scene Change Detection alarms when lens is covered, spray

painted, removed or defocused.

• 4 alarm inputs and 2 outputs terminals

• Alarm actions include Terminal output, Camera positioning, Auto

pan, Patrol, SEQ, Sort, Auto track, B/W and command output.

• Auto Image Stabilizer for applications where vibration or wind is a concern.

• Internal <NTSC/PAL> / Multiplexed Vertical Drive (VD2) <NTSC> synchronization

• Over the coaxial cable or RS485 data (Panasonic, Pelco P/D

Protocol) communication

• 16 alphanumerics camera title display

• Multi language: English, French, Italian, Spanish, German, Russian,

Chinese, Japanese

• IP66 rated water and dust resistant. Compatible with IEC60529

measurement standard.

• Built-in fan/heater for temperature changes of –50 °C ~ +50 °C(-58°F ~122°F)

• Built-in sun shield permits camera locations in direct sunlight.
