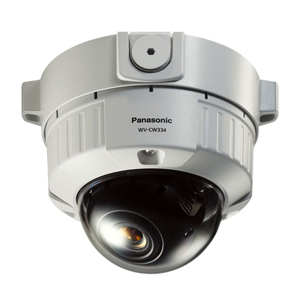

Vandal Resistant Fixed Dome Camera
WV-CW334/CW364
WV-CW334S (24 V AC or 12 V DC)
WV-CW364S (24 V AC or 12 V DC)
WV-CW334S (24 V AC or 12 V DC)
WV-CW364S (24 V AC or 12 V DC)
Vandal Resistant IP66 Day/Night Fixed Dome Camera with 1/3 type CCD
• High resolution: 540 TV lines
• High sensitivity with True Day/Night function (WV-CW364)
: 0.6 lx (Color)
: 0.05 lx (B/W)
• High sensitivity with Simple Day/Night function (WV-CW334)
: 0.6 lx (Color)
: 0.4 lx (B/W)
• ABS (Adaptive Black Stretch) enhances visibility of dark area
without degrading image quality in bright area.
• Vandal resistant mechanism for high reliability
• IP66 rated water and dust resistant. Compatible with IEC60529
measurement standard.
• Various adjustment features including BLC (Back Light Compensation),
ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
• 2 White Balance modes are selectable with Dip Switch:
ATW (Auto Tracking White Balance) / AWC (Automatic White Balance Control)
• 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens
• Internal/Multiplexed Vertical Drive (VD2) synchronization
• Monitor output for easier lens adjustment upon installation
• 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
• Various mounting options: Flush mount, Surface mount and
Embedded ceiling mount
• Optional heater maintains operating temperature –30 °C ~ +50 °C
(–22 °F ~ 122 °F)
