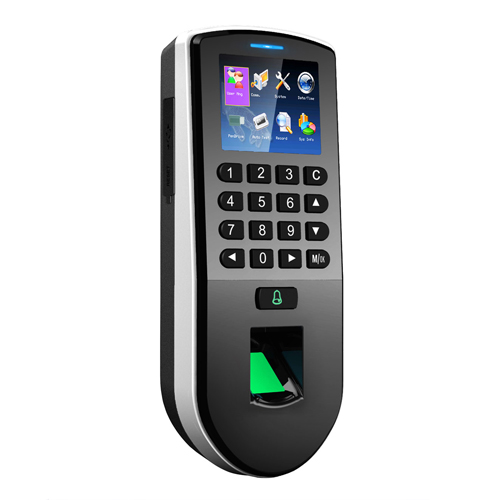

สแกนลายนิ้วมือ ZKTeco รุ่น F19

รหัสสินค้า :   001702
ลักษณะสินค้า :   เครื่องสแกนลายนิ้วมือ เปิด-ปิด ประตู ลงเวลา เข้า-ออก
การรับประกัน :   2 ปี
ราคา :   N/A

ราคารวมภาษี 0.00 บาท

หมายเหตุ: ขายส่งต่างจังหวัด ขายติดตั้งในกรุงเทพฯ ปริมณฑล
Social Share:





รายละเอียดสินค้า

F19, one of innovative biometric fingerprint reader for access control applications, offers unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F 19 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high image quality infrared detection fingerprint sensor. The device offers flexibility to be installed standalone or with any 3rd party access control panels that support standard weigand signal. All the operation can be done on the TFT-LCD color screen. The fingerprint image will be displayed on it. That will guide user to put finger on proper position and increase recognition rate. TCP/IP and RS 485 are available that the device can be used in different network.

  • Features :

    1.Three different kinds of interface style, including common, matrix and magic styles

    2.Reliable, durable and highly accurate ZK infrared detection fingerprint sensor with version 10.0 fingerprint algorithm

    3.Less than 1 second user recognition

    4.Stores 1500 fingerprint templates and 30,000 transactions

    5.Reads fingerprint and/or RFID cards

    6.Built-in Serial and Ethernet ports

    7.Built-in Wiegand input/output port for connection to third part access control panels

    8.Built-in USB port allows for manual data transfer

    9.Audio-Visual indication for acceptance and rejection of valid/invalid fingers

    10.Tamper switch and alarm contacts



    Specifications :

    Fingerprint Capacity

         3000 Templates

    Transaction Capacity

         30,000 Transaction

    Sensor Version

         ZK Optical sensor

    Algorithm Version

         ZK Finger V9.0&10.0

    Communication

         RS232/485, TCP/IP, USB-host

    Access Control Interface

         3rd Party Electric Lock, Door Sensor, Exit

    Button,Alarm, Door Bell



    Wiegand Signal

         input and out put

    Display

         TFT LCD Color Screen

    Interface Styles

         Common, Matrix and Magic styles

    Standard Function

         Webserver, Anti-passback

    Optional supply

         ID Card, Mifare Card

    Power Supply

         12V DC,3A

    Operating  Temperature

         0 C-45 C

    Operating Humidity

         20%-80%

    Dimension(W*H*D)

         87*195*42.5mm
